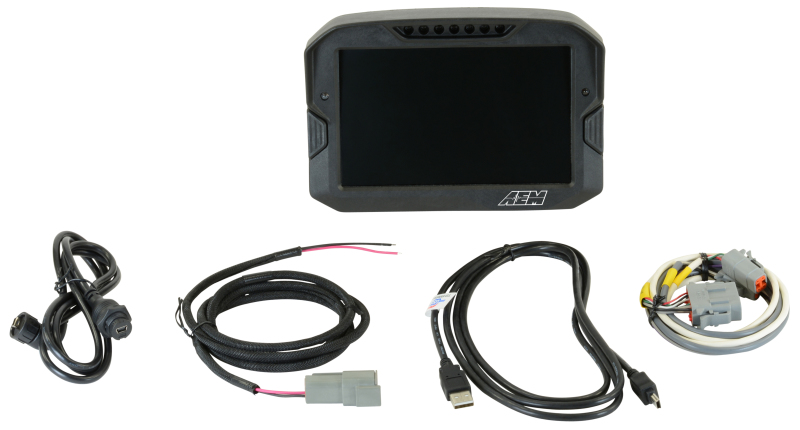

The AEM CD-7 Logging Race Dash is a high-performance digital display designed for racing and automotive enthusiasts seeking advanced data visualization. Featuring a full-color, daylight-readable 7-inch screen with 800x480 resolution, this dash provides clear and vibrant information even under direct sunlight. The rugged flow-molded carbon fiber composite housing offers durability and a lightweight profile, making it suitable for open cockpit, marine, and motorcycle applications. Brightness can be customized to match ambient lighting conditions, ensuring optimal visibility during all driving conditions.

Equipped with seven ultra-bright LEDs positioned on top of the housing, the dash provides programmable RPM and shift lighting indicators that can be tailored to specific RPM ranges. These LEDs can flash or ascend in brightness to signal shift points clearly. Two large, easy-to-press buttons on the face allow for quick page navigation and memory resets, even with gloves on. Additional remote button capabilities are enabled via the supplied rear connector and optional remote switches for flexible installation.

The CD-7 is compatible with multiple CAN bus channels, accepting signals from AEMnet-enabled devices and third-party equipment simultaneously. It supports integration with various vehicle ECUs, including pre-2008 models using a CAN Sensor Module and post-2008 models with a Plug & Play OBDII CAN Adapter Cable. For enhanced data logging, an optional internal memory can record data at up to 1,000Hz per channel, providing detailed insights during testing and racing. The dash also supports the addition of modules like GPS, gyroscopes, G-force sensors, and exhaust gas temperature sensors, enabling comprehensive vehicle diagnostics and performance monitoring.

Designed with user customization in mind, the dash features over 200 warning icons, customizable pages, and the ability to import user-created graphics. The dedicated alarm page quickly highlights system issues, while the unique On-Change page tracks map switching, boost levels, or traction control status. Its IP65 rating ensures resistance to water and dust, making it suitable for demanding environments. The included DashDesign Graphics Editor allows users to create personalized layouts, channels, and alerts, further enhancing the dash’s versatility. Lightweight at just over 20 ounces, the AEM CD-7 Carbon Fiber Digital Dash is a reliable and advanced solution for motorsport and automotive applications requiring precise data display and customization.

Features:

• 7-inch full-color daylight-readable display with 800x480 resolution
• Flow-molded carbon fiber enclosure for durability and lightweight design
• Seven programmable high-brightness LEDs for RPM and shift indication
• Two large face buttons for easy page navigation and memory reset, with remote button compatibility
• Supports multiple CAN bus channels for seamless vehicle data integration
• Compatible with pre-2008 vehicles using the CAN Sensor Module and post-2008 vehicles via OBDII CAN Adapter
• Optional internal data logging up to 1,000Hz per channel
• Supports the addition of GPS, gyroscope, G-force, and EGT modules for comprehensive vehicle diagnostics
• Over 200 customizable warning icons and user-defined graphics for tailored displays
• Dedicated alarm page and On-Change tracking for system monitoring
• IP65 water and dust resistance for harsh environments
• Includes DashDesign Graphics Editor software for layout customization
• Lightweight construction with a total weight of approximately 21 ounces
• Multiple programmable pages, including main, alarm, and startup screens
• Dimmable LEDs and 'Headlight-in' night mode for night operation
• Compatible with various ECUs via plug-and-play adapters and CAN modules
