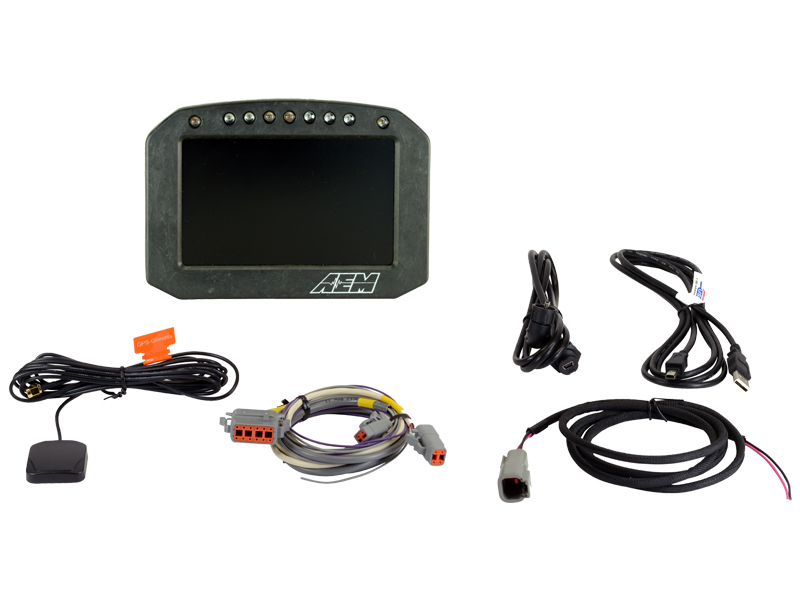

The AEM CD-5LG Carbon Logging Flush Digital Dash Display offers a compact and durable solution for high-performance automotive applications. Featuring a 5-inch full-color, daylight-readable screen with an 800x480 resolution, this dash provides clear visibility even in challenging lighting conditions. Its sleek, flow-molded carbon fiber composite enclosure not only enhances durability but also complements the aesthetics of modern race cars and custom builds. The dash is designed for flush mount installation, making it suitable for tight in-dash enclosures, and does not include buttons or an LED shade hood, simplifying integration into your vehicle's interior.

Equipped with seven ultra-bright programmable LEDs positioned on top of the housing, the display provides RPM and shift light indications that can be customized to ascend in specific RPM increments or flash when it’s time to shift gears. The brightness of these LEDs is user-adjustable, ensuring optimal visibility across various lighting conditions. The unit supports multiple programmable pages, including main displays, alarm, on-change, and startup pages, which can be customized using the included DashDesign Graphics Editor software or by creating your own layouts. It accepts signals from a wide range of ECUs and CAN-enabled devices, offering plug-and-play compatibility with factory 2008-up ECU channels via optional adapters.

This dash features over 200 fully programmable warning and indicator icons, with the ability to add custom graphics that change based on channel values. Its IP66-rated water resistance and anti-glare filter make it suitable for racing environments and outdoor use. The dash also supports GPS functionalities with an internal 20Hz GPS receiver and antenna, enabling vehicle tracking, lap timing, and G-force monitoring when paired with additional modules like the Vehicle Dynamics Module. Two programmable LEDs and extra switch inputs allow for further customization, such as displaying user-triggered events like blinkers or high beams. The unit integrates seamlessly with other AEMnet CAN devices and offers various wiring harness options, including plug-and-play cables for popular ECUs, ensuring straightforward installation and reliable operation.

Features:

• Full-color 5-inch daylight-readable screen with 800x480 resolution
• Flow-molded carbon fiber composite enclosure for lightweight durability
• Seven programmable LED RPM/shift lights with dimming and brightness control
• Supports multiple programmable pages, including main, alarm, on-change, and startup
• Accepts signals from CAN bus, AEMnet, and factory ECUs with optional adapters
• Over 200 customizable warning icons and ability to add user-defined graphics
• Built-in 20Hz GPS receiver and antenna for advanced vehicle data and lap timing
• IP66 water resistance for outdoor and racing environments
• Compatible with various vehicle sensors including temperature inputs and G-forces (additional modules required)
• Easily customizable layouts and graphics via free DashDesign software
• Additional programmable LEDs and switch inputs for event signaling
• Dimmable LEDs and night mode features for optimal visibility in all conditions
• Plug-and-play wiring harnesses for seamless installation
