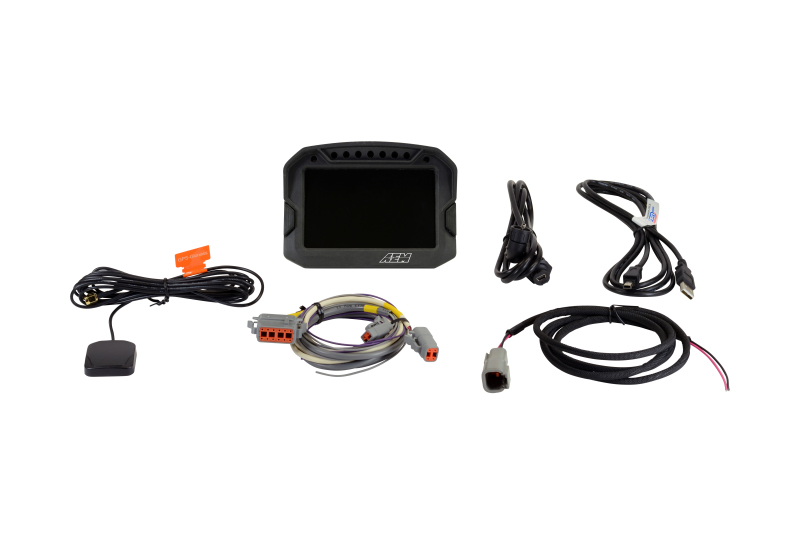

The AEM CD-5LG Carbon Logging Digital Dash Display offers a full-color, daylight-readable 5-inch screen encased in a durable, lightweight flow-molded carbon fiber composite housing. Featuring a high-resolution display with 800x480 pixels, it provides clear visibility even in direct sunlight, thanks to an anti-glare filter and 1000 cd/m² brightness. The dash includes seven programmable LEDs on top of the housing for RPM and shift light indication, which can be customized to flash at specific RPM ranges, aiding precise gear shifting. Two large, easy-to-press buttons on the face enable seamless page navigation and memory resets, with the option for remote mounting via the supplied rear connector for added versatility. Two additional programmable LEDs flank the top of the housing, enhancing user customization and alert capabilities.

Designed for versatility, this display accepts channels from multiple CAN bus sources, including AEMnet-enabled devices and third-party systems, making it suitable for a wide range of vehicles from carbureted engines to modern ECUs. It supports installation on pre-2008 stock ECU vehicles using a 22-channel CAN sensor module, and on 2008-up factory ECUs via a plug-and-play OBDII CAN adapter cable, both sold separately. Optional vehicle dynamics modules can be added for GPS, gyroscope, accelerometer, and track mapping, providing detailed G-load and lap timing data. The display features a dedicated alarm page for quick troubleshooting, customizable warning icons, and the ability to display user-defined graphics and text, enabling personalized dashboard setups.
The user-friendly interface includes seven fully programmable pages, including main, alarm, on-change, and startup pages, with options to create custom layouts or use supplied templates. Over 200 warning icons are included, with the ability to add custom icons and graphics based on channel values. The dash also offers an odometer function, night mode with a 'headlight-in' connection, and a rugged, water-resistant IP66 enclosure suitable for marine and motorcycle environments. Plug-and-play adapter cables are available for specific ECUs like Holley, MSD Atomic, and Vi-Pec, simplifying installation. The device supports internal data logging at up to 10Hz, with options for higher data rates and storage capacity. Overall, the AEM CD-5LG is a comprehensive, high-performance digital dash designed for serious motorsport and automotive enthusiasts seeking customization, durability, and advanced data monitoring capabilities.

Features:

• The unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.
• Available with or without an on-board GPS receiver and antenna
• 'Headlight-in' connection dims the dash and LEDs during night operation
• Accepts channels from two separate user programmable CAN bus connections - works with AEMnet-enabled devices and non-AEM 3rd party devices side by side
• Two programmable LEDs
• Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined)
• Two extra switch inputs included for displaying user-triggered events (blinkers, high beams, etc.)
• Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
• Convert CAN bus channel values to user-defined text in multiple languages
• Odometer function
• Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
• Add Vehicle Dynamics Module for GPS, 3-axis gyroscope, and 3-axis accelerometer for G-loads, roll, pitch, yaw, track mapping, and lap timing (PN 30-2206, sold separately)
• Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)
• Use included page layouts and input your channels and text, or create your own from scratch
• Layout files interchangeable with all versions of the CD-7
• Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own
• Install the CD-5 Carbon on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212, sold separately)
• Total display weight of 11.7 oz./331 grams
• Plug & Play Adapter Cables available for Holley, Link, MSD Atomic, and Vi-Pec ECUs
• Rugged, lightweight flow-molded carbon fiber composite enclosure
• User-supplied graphics can be changed based on channel values (up to the full screen size)
• Available with or without 200Mb internal logging (up to 1,000Hz/channel)
• Wiring interface/harness is identical to the CD-7
• Seven programmable pages, including four Main pages, Alarm, On-Change, and Start-up pages
• Free DashDesign Graphics Editor software
• Full color 5" screen with 800x480 resolution
• IP66 water resistance allows for operation in boats and motorcycles without worry
