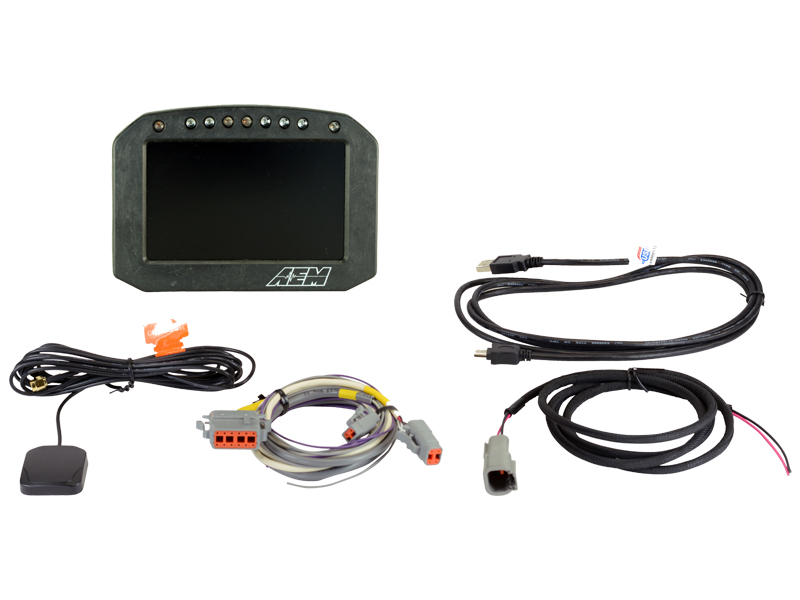

The AEM CD-5G Carbon Flush Digital Dash Display offers a high-performance solution for motorsport enthusiasts seeking a sleek, lightweight, and durable instrument panel. Encased in a flow-molded carbon fiber composite housing, this 5-inch full-color display provides 800x480 resolution, ensuring excellent readability even in direct sunlight. Its daylight-readable screen and anti-glare filter make it ideal for racing environments where clear visibility is crucial. The dash features seven programmable LED indicators for RPM and shift lights, which are dimmable and customizable to match specific RPM ranges and shift points, enhancing driver awareness during high-speed runs.

Designed for versatile installation, the CD-5G is perfect for flush mounting or in-dash enclosures with tight tolerances. It accepts channels from various factory ECUs, including those from 2008-up vehicles via plug-and-play OBDII CAN adapters, making integration straightforward. The dash supports multiple programmable pages, including Main, Alarm, On-Change, and Startup, which can be customized with user-defined layouts, channels, and warning icons. Over 200 warning icons are supplied, and users can add their own graphics or modify existing ones to suit their preferences. The device also features two additional programmable LEDs and two switch inputs for user-triggered events, enabling comprehensive data display and event monitoring.

The AEM CD-5G is equipped with a built-in 20Hz GPS receiver and antenna, facilitating precise lap timing, track mapping, G-load measurements, and other vehicle dynamics data when combined with optional modules such as the GPS-enabled Vehicle Dynamics Module. Its rugged, lightweight design ensures durability under demanding racing conditions, with an IP66 water resistance rating for protection against environmental elements. For enhanced functionality, optional accessories like CAN sensor modules, temperature inputs, and onboard data logging can be added, providing an extensive range of telemetry and diagnostic capabilities. The dash also features a 'Headlight-in' mode that dims the display during night driving, ensuring optimal visibility without distraction.

Complete with free DashDesign Graphics Editor software, the AEM CD-5G allows users to create customized layouts and graphics, ensuring the display aligns perfectly with their vehicle and preferences. Its compatibility with multiple ECUs and CAN bus devices makes it a versatile choice for race teams and automotive enthusiasts seeking a comprehensive, professional-grade dashboard solution.

Features:

• Full-color 5-inch display with 800x480 resolution for clear visibility
• Flow-molded carbon fiber composite enclosure for durability and lightweight design
• Daylight-readable screen with an anti-glare filter for bright sunlight conditions
• Seven programmable, dimmable LED indicators for RPM and shift lights
• Accepts channels from factory ECUs via plug-and-play CAN adapters
• Supports multiple programmable pages including Main, Alarm, On-Change, and Startup
• Over 200 customizable warning icons with user-defined graphics
• Two additional programmable LEDs and switch inputs for user events
• Built-in 20Hz GPS receiver and antenna for vehicle dynamics data
• Compatible with optional modules for G-loads, lap timing, temperature inputs, and data logging
• Rugged, water-resistant IP66 enclosure suitable for demanding racing environments
• Includes free DashDesign Graphics Editor software for layout customization
• Supports CAN-enabled devices from various manufacturers
• Dimmable display mode for night operation with 'Headlight-in' feature
• Interchangeable layout files for seamless upgrades and customization
