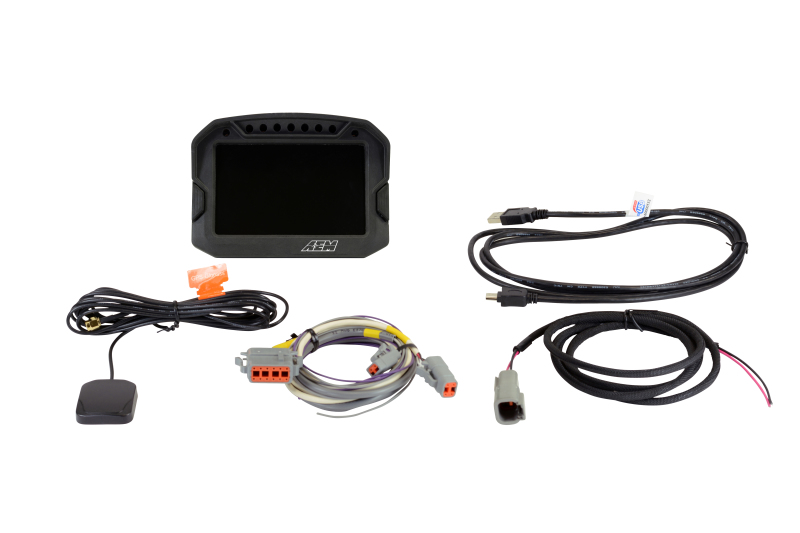

The AEM CD-5G Carbon Digital Dash Display offers a high-resolution 5-inch full-color, daylight-readable screen housed in a durable, lightweight flow-molded carbon fiber composite enclosure. Its rugged design ensures reliable operation in various environments, including automotive, marine, and motorcycle applications. The display features seven ultra-bright LEDs at the top, which can be programmed for RPM and shift indication, with adjustable brightness and flashing options to optimize visibility during racing or daily driving. Large tactile buttons on the face allow for intuitive page navigation and memory resets, with the option to mount remote buttons via the rear connector for enhanced convenience.

Equipped with an internal 10Hz GPS receiver and antenna, the CD-5G provides precise vehicle tracking data, lap times, and G-loads when paired with the optional Vehicle Dynamics Module. It accepts signals from two separate CAN bus channels, compatible with AEMnet-enabled devices and third-party systems, making it versatile for various vehicle configurations. The display supports multiple input methods, including plug-and-play adapters for popular ECUs such as Holley and MSD, simplifying installation on both carbureted and modern EFI vehicles. Users can customize the interface with over 200 warning icons, create their own graphics, and configure up to seven programmable pages, including dedicated alarm and on-change pages for real-time vehicle status updates.

The IP66-rated enclosure ensures water resistance for use in boats and motorcycles, while the bright, anti-glare screen remains visible in direct sunlight. The dash includes two additional programmable LEDs for user-defined events like turn signals or high beams. The software-based DashDesign Graphics Editor allows for personalized layouts, text, and graphics, making each display unique to the user’s preferences. The display's odometer function, dimming during night operation, and multiple language support enhance usability across different applications. The device's compact weight and dimensions make it suitable for tight installations, and optional internal data logging supports recording at up to 1,000Hz per channel for detailed analysis.

Designed for versatility and durability, the AEM CD-5G Carbon Digital Dash Display is an ideal choice for enthusiasts seeking a customizable, high-performance digital dashboard that integrates seamlessly with a variety of vehicle systems and driving conditions.

Features:

• Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own
• Free DashDesign Graphics Editor software
• Install the CD-5 Carbon on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212, sold separately)
• Two programmable LEDs
• Seven programmable pages, including four Main pages, Alarm, On-Change, and Start-up pages
• Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)
• Two extra switch inputs included for displaying user-triggered events (blinkers, high beams, etc.)
• Full color 5" screen with 800x480 resolution
• Add Vehicle Dynamics Module for GPS, 3-axis gyroscope, and 3-axis accelerometer for G-loads, roll, pitch, yaw, track mapping, and lap timing (PN 30-2206, sold separately)
• Odometer function
• Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
• Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined)
• Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
• Wiring interface/harness is identical to the CD-7
• IP66 water resistance allows for operation in boats and motorcycles without worry
• 'Headlight-in' connection dims the dash and LEDs during night operation
• Plug & Play Adapter Cables available for Holley, Link, MSD Atomic, and Vi-Pec ECUs
• User-supplied graphics can be changed based on channel values (up to the full screen size)
• Use included page layouts and input your channels and text, or create your own from scratch
• Rugged, lightweight flow-molded carbon fiber composite enclosure
• Total display weight of 11.7 oz./331 grams
• Accepts channels from two separate user programmable CAN bus connections - works with AEMnet-enabled devices and non-AEM 3rd party devices side by side
• Convert CAN bus channel values to user-defined text in multiple languages
• The unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.
• Available with or without an on-board GPS receiver and antenna
• Available with or without 200Mb internal logging (up to 1,000Hz/channel)
• Layout files interchangeable with all versions of the CD-7
