Product Details
| Part Number: | 30-2130-15 |
| Brand: | AEM Electronics |

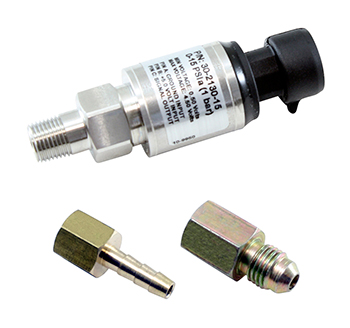

1 BAR / 15 PSIa MAP Stainless Sensor Kit. Stainless Steel Sensor Body. 1/8" NPT Male Thread. Includes: 1 BAR / 15 PSIa MAP Stainless Steel Sensor, Connector, Pins, 1/8" NPT to -4 Adapter & 1/8" NPT to 3/16" Barb Adapter.
Sensor Performance Specifications:
- Accuracy: +/- 1% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
- Operating Temp: -40C to 105C / -40F to 221F
- Burst Pressure: 150PSI
- Response Time: greater than 1mS
- Wetted Materials: 304L & 316L Stainless Steel
- Vibration: 100 to 2000Hz, 20g Sinusoidal, 3 Axes
- Weight: greater than 85g
- Supply Current: greater than 6mA at 5 Vdc
- Output: .5 to 4.5Vdc Linear
- Transfer Function: PSI = (3.7501*(Voltage))-16.575
- Elec. Termination: Integral weatherproof connector, includes mating connector & Pins(Supply Voltage 5Vdc +/- .5, Ground, Output)
