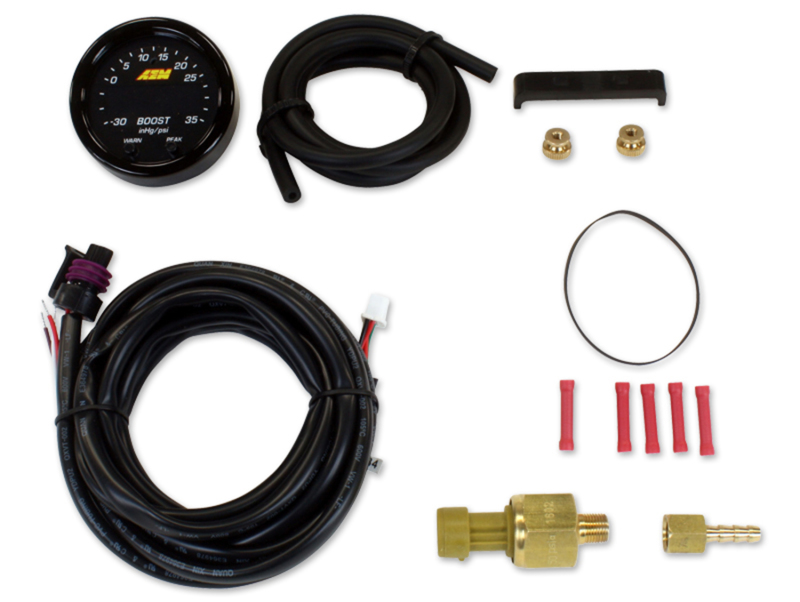

The AEM X-Series Boost Pressure Gauge Kit (Part Number 30-0308) offers advanced functionality designed for precise engine management and performance monitoring. Featuring a sleek 2-1/16 inch (52mm) diameter, this gauge fits easily into standard gauge pods and is suitable for various mounting configurations. Its slim profile of approximately 0.825 inches overall depth allows flexible installation options without sacrificing space or aesthetics. The gauge displays boost pressure ranging from -30 inches of mercury (inHg) to 60 pounds per square inch (PSI), with a user-selectable display that switches between standard and metric units for versatility. The center LED display is 87% larger than previous models, providing clear visibility, while 24 outer green LEDs offer quick reference to engine parameters at a glance. The auto-dimming sensor ensures optimal brightness in different lighting conditions, reducing glare and eye strain during nighttime driving or track use.

Features:

• Slim 0.825" overall gauge depth and 0.200" cup depth - mount them virtually anywhere!
• 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
• Programmable center LED is 87% larger than the original AEM gauges
• 24 green outer LEDs for quick reference to the engine parameter
• User selectable standard or metric display ( -30in/Hg~60PSI / -1~4BAR)
• Peak/Recall via gauge face buttons
• User selectable threshold warnings (excl. Volts)
• Optional silver bezel with white faceplate(s), accessory kits available (sold separately)
• AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
• 0-5v analog outputs for transmitting data to EMS or Data Logger
• Auto dimming sensor delivers ideal display brightness
• Positive locking connectors providea  secure connection
