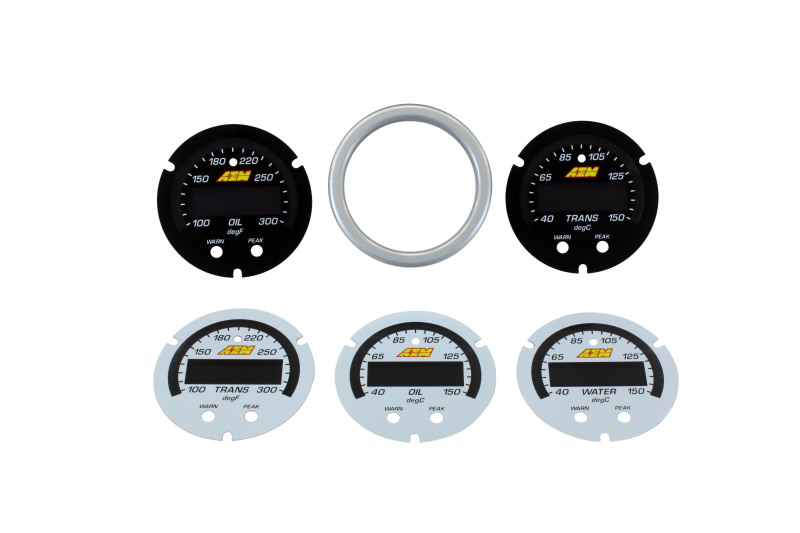

The AEM X-Series Temperature Gauge Accessory Kit offers an advanced solution for monitoring engine temperatures ranging from 100°F to 300°F (40°C to 150°C). Designed with a slim profile featuring a 2-1/16 inch (52mm) diameter, this gauge is ideal for seamless installation in various gauge pods. Its compact design includes a mere 0.825 inches overall depth and a 0.200-inch cup depth, allowing flexible mounting options without sacrificing space. The kit's silver bezel and optional white or black faceplates enable customization to match your vehicle's interior aesthetics.

Built with modern features, this temperature gauge is equipped with AEMnet CANbus capability for transmitting data directly to your engine management system (EMS) or data logger, facilitating real-time monitoring and diagnostics. The gauge provides user-selectable display units between standard and metric modes and offers 0-5V analog outputs for versatile data integration. Its programmable center LED, which is 87% larger than previous models, enhances visibility and quick reference. Additionally, 24 green outer LEDs deliver immediate visual cues of engine parameters, promoting safe and efficient operation.
The auto-dimming sensor ensures optimal display brightness under varying lighting conditions, reducing glare and improving readability. Secure positive locking connectors guarantee consistent and reliable connections, while face buttons allow for peak/recall functions and user-defined threshold warnings. The combination of these features makes this gauge a comprehensive tool for performance enthusiasts and professional mechanics alike. Whether you need precise temperature monitoring or data logging capabilities, the AEM X-Series Temperature Gauge Accessory Kit is designed for durability, versatility, and ease of use in automotive environments.

Features:

• Slim design with 0.825-inch overall depth and 0.200-inch cup depth for flexible mounting
• AEMnet CANbus-enabled for seamless data transmission to EMS or Data Logger
• User-selectable display units: standard or metric (100-300°F / 40-150°C)
• 0-5V analog outputs for versatile data sharing with external devices
• 2-1/16 inch (52mm) gauge diameter suitable for standard gauge pods
• Programmable center LED, 87% larger than previous models for improved visibility
• 24 green outer LEDs for quick engine parameter reference
• Auto-dimming sensor adjusts brightness for optimal viewing in various lighting conditions
• Positive locking connectors ensure secure electrical connections
• Peak/Recall functions are accessible via the face buttons
• User-configurable threshold warning settings
• Available with silver bezel and white or black faceplates for customization
