The AEM X-Series Wideband UEGO AFR Sensor Controller Gauge Accessory Kit provides advanced air/fuel ratio monitoring with customizable features for precise tuning. This 52mm gauge features a slim profile with a depth of only 0.825 inches, making it suitable for tight installation spaces. It includes a Bosch 4.9LSU wideband UEGO sensor and offers fast response times, verified through independent testing against 17 competitors. The gauge’s user-configurable display allows you to switch AFR values for different fuels, toggle between Lambda or O2%, and select a 3- or 4-digit center display for optimal readability.
Connectivity options include 0-5V and RS232 outputs for data logging and feedback control, as well as AEMnet (CANbus) for daisy-chaining multiple controllers up to 16 cylinders. The factory calibration resistor eliminates the need for free-air calibration over sensor lifespan, although calibration can be performed if needed. An auto-dimming feature enhances visibility in various lighting conditions, and locking connectors ensure a secure connection between the harness and gauge.

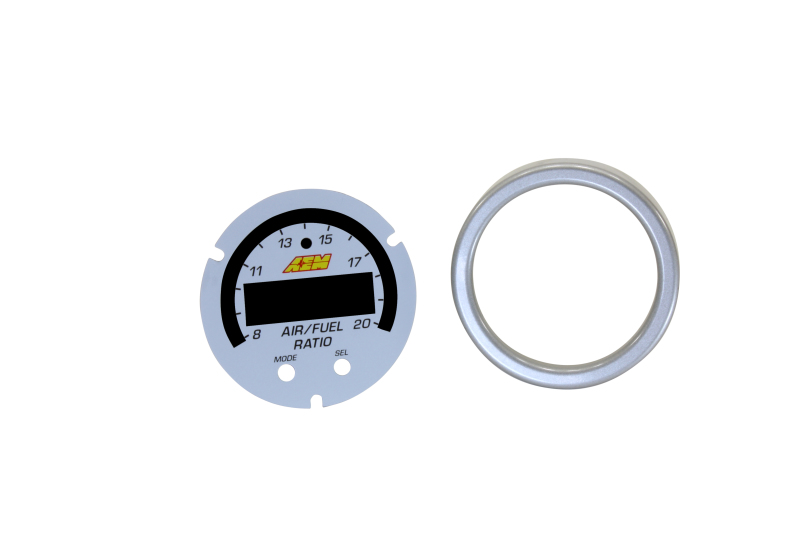

The accessory kit comes with a sleek silver bezel and dual-faced faceplate for air/fuel and Lambda readings.

Features:

• Silver bezel/white gauge option
• X-Series Wideband UEGO AFR Controller Gauge was the fastest responding wideband air/fuel ratio controller in an independent test vs. 17 competitors' wideband AFR controllers
• Patented X-Digital wideband technology
• Includes Bosch 4.9LSU wideband UEGO sensor
• A factory-calibrated resistor does not require free-air calibration, but technology allows for free-air calibration as the sensor ages if the user desires
• Compatible with vehicle/system voltages up to 16V
• 0-5V & RS232 output for data logging and feedback control, AEMnet (CANbus) for data logging and daisy-chaining multiple controllers up to 16 cylinders
• Can display AFR values in hundredths of %
• 52mm gauge diameter and slim 0.825" gauge depth
• Gauge cup depth only .200" deep
• Auto dimming feature
• User configurable display via buttons on the gauge face for changing AFR values, Lambda, and O2%, and a 3- or 4-digit display
