Product Details
| Part Number: | HC12-HDR4 |
| Brand: | ACT |

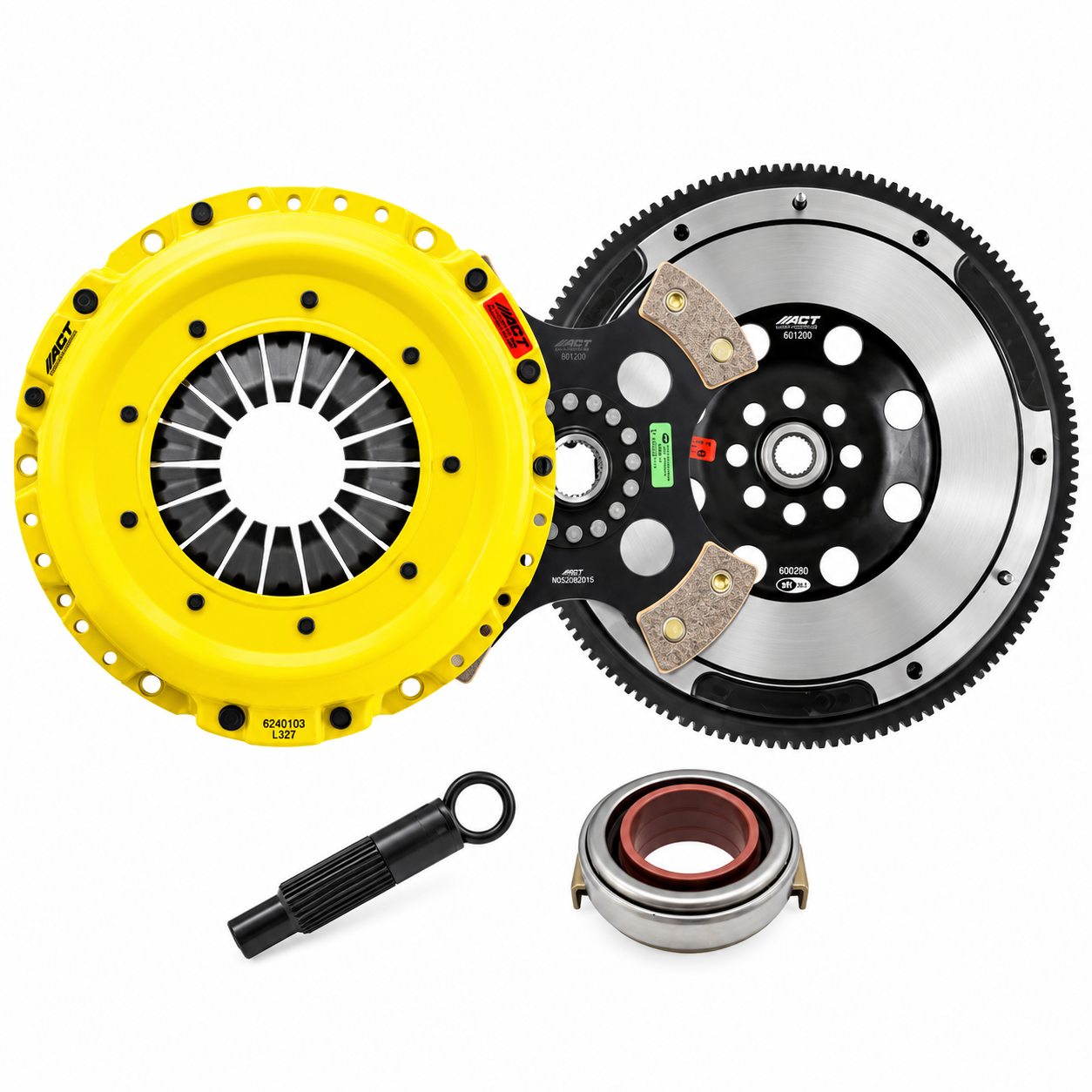

The ACT HC12-HDR4 Heavy Duty Race Clutch Kit is engineered for high-performance Honda Civic Type R and Acura Integra Type S applications that demand significantly more holding capacity and faster clutch response than the factory setup. Combining ACT’s Heavy Duty pressure plate with a rigid 4-pad ceramic race disc and Streetlite flywheel, this package is designed primarily for racing and aggressive high-power builds.
ACT’s Heavy Duty pressure plate uses a specially designed diaphragm to increase clamp load while minimizing deflection. The rigid 4-pad disc utilizes ceramic friction material and a heat-treated chromoly hub, providing excellent heat tolerance and quick engagement. Its lightweight rigid construction helps reduce rotational inertia for faster shifting, although engagement is considerably more aggressive than a conventional street clutch.
Rated by ACT for 527 lb-ft of torque at the engine, the HC12-HDR4 provides approximately 71% more torque capacity than the OE clutch. ACT recommends this configuration for race use only.
Features:
- Heavy Duty ACT pressure plate with increased clamp load
- 527 lb-ft torque capacity measured at the engine/crank
- Approximately 71% increase in torque capacity over OE
- 4-pad rigid race clutch disc
- High-temperature ceramic friction material
- Heat-treated chromoly disc hub for strength and durability
- Aggressive engagement designed for quick shifts
- 240mm (9.4") clutch disc diameter
- 24-spline disc with approximately 1-1/32" input shaft diameter
- Includes ACT Streetlite flywheel
- Flywheel and pressure plate mounting bolts included
- Release bearing and clutch alignment tool included
- 100% clamp-load tested and dynamically computer balanced by ACT
- Recommended for race use only
- ACT 12-month warranty
Vehicle Fitment:
- 2017–2021 Honda Civic Type R (FK8) 2.0L Turbo
- 2023–2026 Honda Civic Type R (FL5) 2.0L Turbo
- 2024–2026 Acura Integra Type S (DE5) 2.0L Turbo Advanced Clutch Technology
Note: This clutch requires the ACT flywheel, which is included with the HC12-HDR4 kit. Because of the rigid ceramic 4-pad design, expect aggressive engagement and potentially increased drivetrain/gear noise compared with the factory clutch.
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 2017 | Honda | Civic | Type R |
| 2018 | Honda | Civic | Type R |
| 2019 | Honda | Civic | Type R |
| 2020 | Honda | Civic | Type R |
| 2021 | Honda | Civic | Type R |
| 2021 | Honda | Civic | Type R Limited Edition |
| 2023 | Honda | Civic | Type R |
| 2024 | Acura | Integra | Type S |
| 2024 | Honda | Civic | Type R |
| 2025 | Acura | Integra | Type S |
| 2025 | Honda | Civic | Type R |
| 2026 | Acura | Integra | Type S |
| 2026 | Honda | Civic | Type R |
