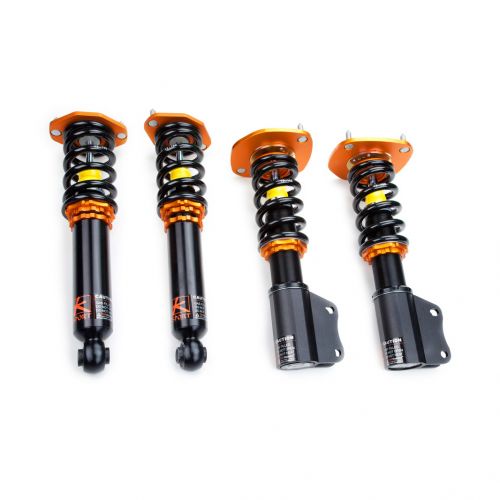

KSport 02-06 RSX Version DR (Drag Race) Coilovers

KSport 02-06 RSX Version DR (Drag Race) Coilovers-A1
KSport 02-06 RSX Version DR (Drag Race) Coilovers-A2
KSport 02-06 RSX Version DR (Drag Race) Coilovers-A3
KSport 02-06 RSX Version DR (Drag Race) Coilovers-A4
KSport 02-06 RSX Version DR (Drag Race) Coilovers-A5
Images may be for reference only

KSport 02-06 RSX Version DR (Drag Race) Coilovers

Be the first to review!
Price: $1400.00 ($210.00 off)
$1,190.00 & Free Shipping

Reward Points

It pays to shop with K Series Parts and our reward points program! For every $1.00 you spend you earn reward points.

They are easy to earn, just log in to your account when you check out. If you don't have one it is free and easy to setup.

They are easy to use during check out. Click on the "Have Reward Points?" on the shipping and payment selection page.

Reward Point Program Details

You earn 2 points for every $1.00 that you spend.

100 points equal a $1.00 discount.

Maximum discount per order is 5% of the order total.

There is no minimum order total to redeem points.

Points do not apply to shipping or sales tax.

Points are not redeemable for cash.

The point value per dollar, points earned per purchase, and order minimum are subject to change.

Earn 2380 reward points. Learn More

special order
Please contact us for estimated delivery

Monday-Friday: 9am-4pm MST


The Ksport Version DR coilover system is specially engineered for drag racing applications. With proven performance on the drag strip, the Ksport Version DR system will reduce your E.T. and 60 ft times. The DR system is built on our race proven Version RR coilover, with internal changes to accomodate the rigors of drag racing. All Version DR drag racing coilovers will be custom valved for drag racing, with appropriate spring rates chosen to maximize traction and regulate weight transfer.

As with all Ksport coilovers, the Version DR Drag Race coilover allows for 36 levels of damping adjustment, spring pre-load adjustment, and height adjustment without sacrificing shock travel. The electro-plated steel shock bodies resist rust and corrosion, and all mounts are constructed from 6061-T6 aluminum for superior strength.


  • Front Spring Rate: 7.2kg - 403lbs
  • Rear Spring Rate: 18kg - 1008lbs
  • Front feature adjustable camber plate
  • Spring Rates and Shock Valving Specific For Drag Racing
  • 36 Way Adjustable Damping
  • Collars and Upper Mounts Made From 6061 Aluminum With T6 For Increased Hardness
  • Adjustable Spring Perch For Height Adjustment
  • Adjustable Lower Mount Allowing For Maximum Suspension Travel
  • Camber Adjustment
  • Pillowball Top Mounts For Increased Steering Feel
  • Monotube High Pressure Design Reduces Oil Leakage
  • Electroplated Body For Added Protection From Corrosion and Rust
  • Dust Boot To Protect Damper Seal
  • 18 Month Limited Warranty

WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects.


Brand: KSport
Part Number: KSP-CAC030-DR

Vehicle Fitment

Acura RSX
2002 Acura RSX Automatic 2003 Acura RSX Automatic 2004 Acura RSX Automatic 2005 Acura RSX Automatic 2006 Acura RSX Automatic
2002 Acura RSX Manual 2003 Acura RSX Manual 2004 Acura RSX Manual 2005 Acura RSX Manual 2006 Acura RSX Manual
2002 Acura RSX Type-S 2003 Acura RSX Type-S 2004 Acura RSX Type-S 2005 Acura RSX Type-S 2006 Acura RSX Type-S
