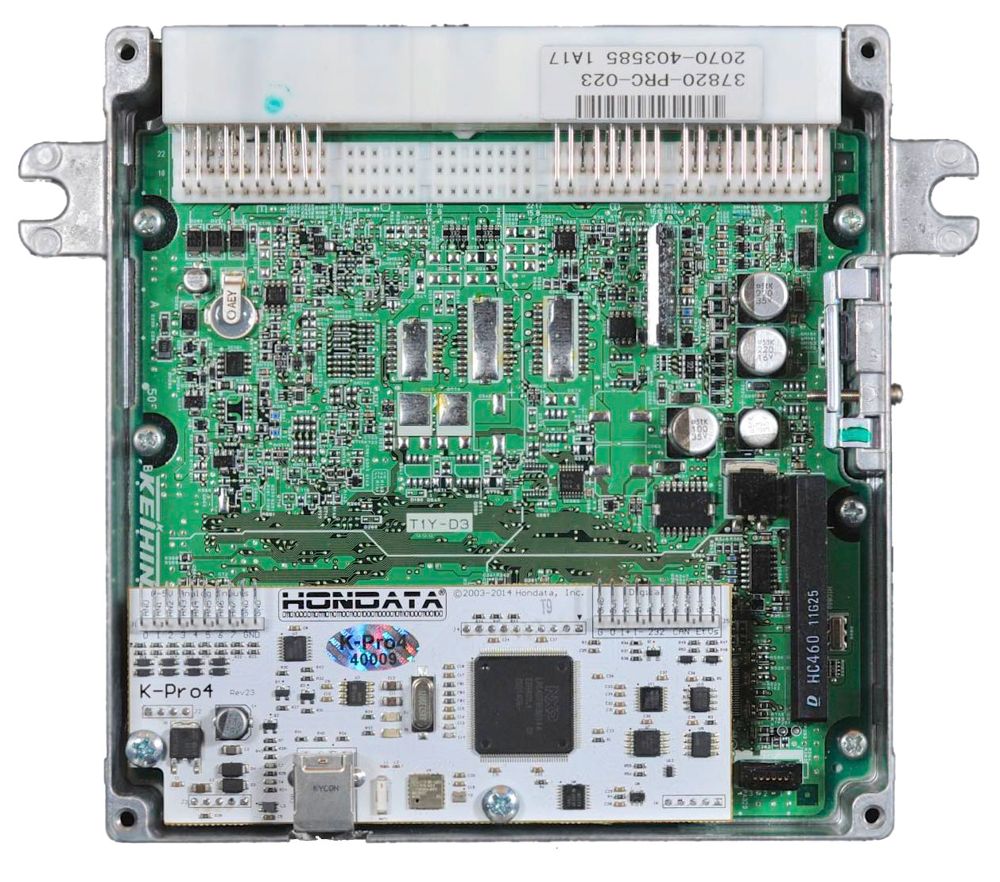

This is a specially adapted ECU which allows the 2000-2005 S2000 to run from a RSX ECU. The engine crank and cam sensors must be changed to equivalent 2006-2007 parts - see below.
The S2000 KPro includes a new or user supplied RSX (PRB) ECU adapted for the S2000, and a wiring harness for the crank and cam sensors. It does not include the Honda parts - see mechanical modifications below. All user supplied ECUs must be PRB A01-A12 and in perfect working order. We will not use any other ECUs for the S2000.
The following items must be replaced before the S2000 K-Pro can be used. These parts are not supplied by Hondata and should be purchased from a Honda dealer.
- Crank sensor 37500-PZX-003
- Crank wheel 13622-PCX-013
- TDC sensor 37510-PZX-003
- TDC wheel 14112-PCX-003
- Valve cover 12310-PCX-020
- Drain plug washer (for PCV valve) 94109-14000
- PCV valve 17130-PCX-003
- IAT sensor 37880-P05-A00 (not required, but stock IAT will read about 30 degrees hotter)
The approximate cost of these parts is $300-375.
Swapping the parts is relatively straight forward. Refer to the Helm manual for more information, but in brief you will need to:
- Remove and replace the crank sensor in the timing cover, and reinstall the timing cover.
- Remove old wiring to crank sensor.
- Install wiring harness from crank sensor to ECU.
- Reinstall water pump pulley and accessory belt.
- Remove the valve cover.
- Remove and replace the TDC sensor wheel (exhaust cam).
- Install the new TDC sensor and PCV valve in the new timing cover, and install the new valve cover.
- Remove S2000 ECU. Install the wiring harness through the firewall underneath the clutch master cylinder. If you have cut the wiring rubber boot, seal it with silicone sealer.
- Install the RSX ECU.
- Remove the accessory belt.
- Remove the water pump pulley.
- Remove the crank pulley.
- Remove the front timing cover.
- Remove and replace the crank timing wheel.
