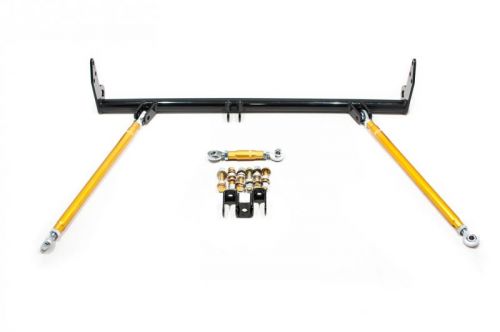

Full-Race’s legendary K-swap traction bar system is ideal for high power street, autocross and road race applications. Virtually eliminating wheelhop for motor-swapped 92-00 civic and 94-01 integra, this traction bar utilizes a solid front motor mount. This prevents unwanted motor and transmission movement commonly seen on high output FWD vehicles. Engine vibrations will be increased somewhat with this type of motor mount. However, this mount can be easily removed in a few minutes with a basic set of hand tools. Simply install the mount when need be and remove it when it is not desired.
Full-Race recommends using the traction bars to gently pull the LCA towards the front of the car, just 1 turns. This allows a slight increase in caster, kept even from Left to Right
- ’92-’00 Civic with Honda K Series motor
- ’94-’01 Integra with Honda K Series motor
- Mounts designed for engine swaps utilizing Hasport mounts.

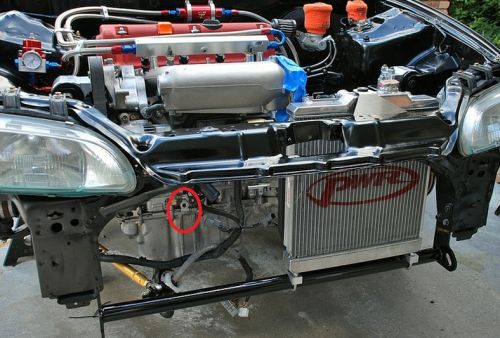

This picture shows how the DC/EG/EK traction bar clevis MUST be mounted in line and level with the lower control arm.
DO NOT mount the clevis perpendicular to the control arm (like this) or any orientation other than in line and level with the lower control arm.
