AEM Infinity 10 Stand Alone Programmable EMS

AEM Infinity 10 Stand Alone Programmable EMS-A1
AEM Infinity 10 Stand Alone Programmable EMS-A2
AEM Infinity 10 Stand Alone Programmable EMS-A3
AEM Infinity 10 Stand Alone Programmable EMS-A4
AEM Infinity 10 Stand Alone Programmable EMS-A5
AEM Infinity 10 Stand Alone Programmable EMS-A6
AEM Infinity 10 Stand Alone Programmable EMS-A7
AEM Infinity 10 Stand Alone Programmable EMS-A8
Images may be for reference only

AEM Infinity 10 Stand Alone Programmable EMS

Be the first to review!
Price: $3882.30 ($1087.04 off)
$2,795.26 & Free Shipping

Reward Points

It pays to shop with K Series Parts and our reward points program! For every $1.00 you spend you earn reward points.

They are easy to earn, just log in to your account when you check out. If you don't have one it is free and easy to setup.

They are easy to use during check out. Click on the "Have Reward Points?" on the shipping and payment selection page.

Reward Point Program Details

You earn 2 points for every $1.00 that you spend.

100 points equal a $1.00 discount.

Maximum discount per order is 5% of the order total.

There is no minimum order total to redeem points.

Points do not apply to shipping or sales tax.

Points are not redeemable for cash.

The point value per dollar, points earned per purchase, and order minimum are subject to change.

Earn 5591 reward points. Learn More

Out of Stock
Enter your email address to be notified when it is back in stock.

Monday-Friday: 9am-4pm MST


The Infinity EMS delivers high end engine control for the racing masses at a fraction of the cost. Combined with AEM's industry leading after-purchase support system, including free technical support, the Infinity is the ultimate engine control solution for both professional race teams and weekend track cars.

Built around a latest-generation, 32-bit, 200MHz automotive processor, the Infinity is capable of processing 400 MIPS (millions of instructions per second).

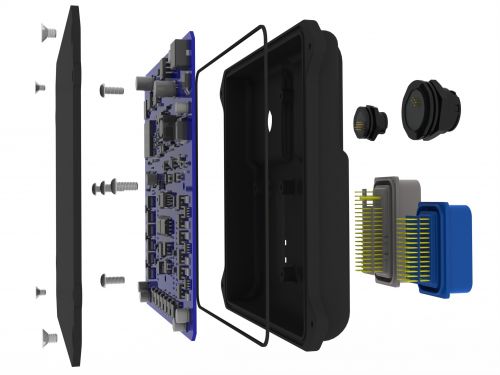

Sealed aluminum enclosure with IP67 Rated communications connections (Dustproof and Waterproof).

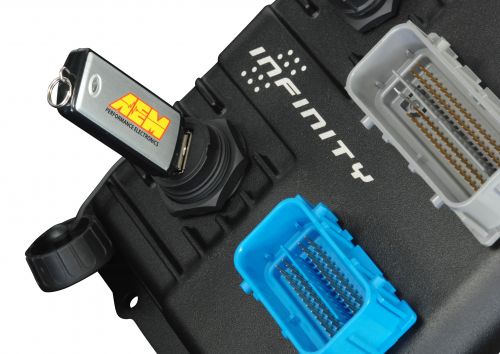

The Infinity is capable of logging over 100 channels at 1KHz (1,000 samples/second).

Available strategies include MAP, Overboost , Fuel pressure, Oil pressure, Coolant temperature, Temp vs. RPM, Knock control with feedback and Lean protection.

The infinity has the ability to run two separate fuel types simultaneously through staged fuel injection. This can be done by simply specifying the fuel type for each injection stage in the set-up wizard.

The Infinity's core control model is designed for flex fuel compatibility and allows you to run gasoline/ethanol blend in any proportion from 100% gasoline to 100% ethanol in a single stage of injection. It makes automatic adjustments for ethanol content and applies them to fuel flow, ignition timing and boost target (ethanol content sensor is not included).

  • Airflow Model Based Calculations
  • InfinityTuner User Interface Software
  • Ultra-High Resolution Fuel Control
  • Accurace Ignition Timing
  • Flex Fuel Compensation
  • Multi-Fuel Capable
  • Drive By Wire Capability
  • Idle Control
  • Multiple Boost Control Strategies
  • Nitrous Cotnrol
  • Variable Valve Control
  • Map Switching
  • Integrated Engine Protection Strategies
  • Real-Time Diagnosis
  • Dual Internal Wideband Controller
  • Lightning-Fast Data Loging
  • AEMdata Data Analysis Software
  • Dual Knock Sensing
  • Internal Simulator

  • Technical Specs:
  • Up to 12 peak and hold injector drivers
  • Up to 12 (0-5V) ignition outputs
  • 3 analog temp inputs (Additional 3 with Advanced Tuning Package)
  • 11 analog voltage inputs (Additional 6 with Advanced Tuning Package)
  • 7 digital inputs (Additional 1 with Advanced Tuning Package)
  • 4 VR/Mag differential pair inputs (Additional 2 with Advanced Tuning Package)
  • 12 configurable outputs (Additional 1 with Advanced Tuning Package)
  • Variable cam control (up to 4 cams, application dependent)
  • Dual internal wideband controllers
  • 2 H-Bridge drivers for drive-by wire (Application dependent. Requires Advanced Tuning Package)
  • 32 Bit, 200MHz 400 MIPS primary microprocessor
  • 20 MHz auxiliary microprocessor

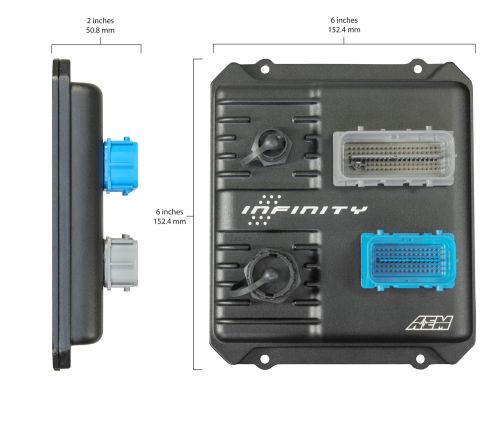

  • 6" L x 6" W x 2" H (1.125" H w/o connectors)
  • 24 Ounces/680.4 Grams
  • 129 pin, fully-sealed ECU enclosure and IP67 spec connectors

  • Not legal for sale or use in California on any pollution controlled motor vehicles. See for state by state emissions requirements.

    WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects.


    Brand: AEM Electronics
    Part Number: 30-7100
    UPC: 840879022211
    CARB Approved: No
