Product Details
Brand: | AEM Electronics |
Part Number: | 30-4900 |
UPC: | 840879022150 |
The Wideband FAILSAFE Gauge is a Universal Exhaust Gas Oxygen controller with an internal boost sensor, an internal data logger and a full color Organic Light Emitting Diode (OLED) display. It includes technology to activate a failsafe strategy in the event AFR falls outside of a user-defined operating window. If the AFR falls outside of the set operating window, the Wideband FAILSAFE Gauge triggers a user defined output function that can save an engine from catastrophic damage.

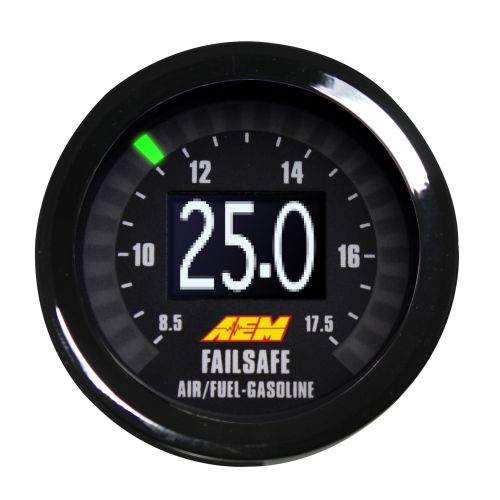

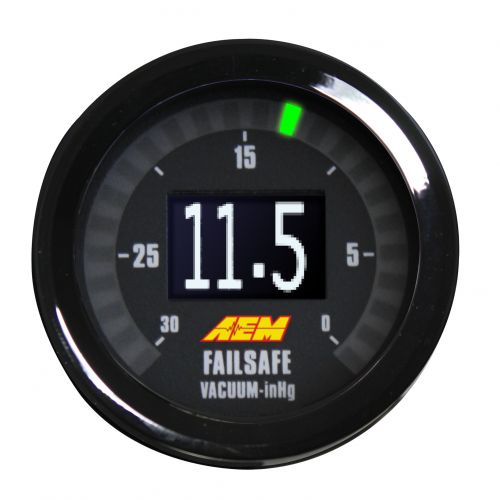

The 52mm (2-1/16") Wideband FAILSAFE Gauge includes a Bosch 4.2LSU AFR wideband sensor for monitoring and feedback of AFR and an on-board boost sensor to read vacuum or boost pressures up to 30 PSIG. Both boost and AFR can be displayed in real time on the gauge's face using the full color OLED screen and 24 three-color sweeping LEDs. The gauge includes a low side output for triggering a failsafe strategy in the event AFR falls outside of the operating window (see example strategies, below), and an RPM input to log RPM for tuning purposes.
Once installed, users connect to the gauge via a USB port and use the supplied software to log an engine's safe AFR operating range, set minimum and maximum AFR ranges, alarm mode, time delay strategy, failsafe strategy and gauge display configuration.
Accurate AFR data is critical when tuning an engine. Running rich (very low air/fuel ratio, excessive fuel) can cause a loss in power and fuel economy, while running too lean (very high air/fuel ratio, not enough fuel) may result in serious engine damage. Using a wideband air/fuel controller during the tuning process allows you to monitor AFR and adjust tuning parameters to optimize them for maximum power and efficiency.
The 52mm (2-1/16") Wideband FAILSAFE Gauge includes a Bosch 4.2LSU AFR wideband sensor for monitoring and feedback of AFR and an on-board boost sensor to read vacuum or boost pressures up to 30 PSIG. Both boost and AFR can be displayed in real time on the gauge's face using the full color OLED screen and 24 three-color sweeping LEDs. The gauge includes a low side output for triggering a failsafe strategy in the event AFR falls outside of the operating window (see example strategies, below), and an RPM input to log RPM for tuning purposes.
Once installed, users connect to the gauge via a USB port and use the supplied software to log an engine's safe AFR operating range, set minimum and maximum AFR ranges, alarm mode, time delay strategy, failsafe strategy and gauge display configuration.
Accurate AFR data is critical when tuning an engine. Running rich (very low air/fuel ratio, excessive fuel) can cause a loss in power and fuel economy, while running too lean (very high air/fuel ratio, not enough fuel) may result in serious engine damage. Using a wideband air/fuel controller during the tuning process allows you to monitor AFR and adjust tuning parameters to optimize them for maximum power and efficiency.
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment
