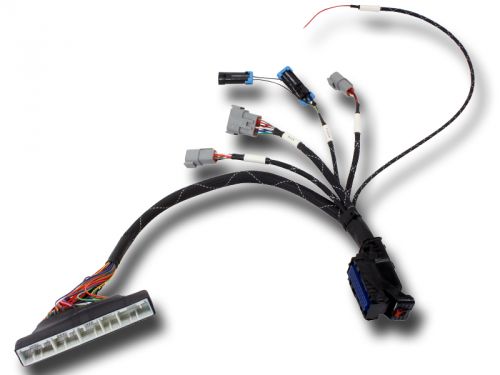

AEM 02-03 RSX Type-S Infinity Plug and Play Jumper Harness
The Infinity ECU for manual transmission equipped 2001-05 Honda/Acura K-Series racing engines (Infinity-6 PN 30-7106 and Infinity-8h PN 30-7108) includes an engine-specific start-up calibration and connects to the engine via a Plug & Play harness. Begin by determining which Infinity ECU will best support the ancillary components in your manual transmission-equipped Honda K-Series engine using Infinity.
The Infinity ECU combines with the Plug & Play harness to replace the factory ECU. It controls all of the engine functions and the Plug & Play wiring harness adapter eliminates the need for cutting and splicing wires.
AEM's sealed, weatherproof Plug & Play harness includes a Lambda connector, an AEMnet connector for communication with other AEMnet enabled devices and an auxiliary connector with a Deutsch DTM 12P connector for adding common aftermarket sensors.
Once you have determined which Infinity ECU will best support your Honda K-Series M/T engine, you will need to purchase the K-Series Plug & Play adapter harness. AEM's Plug & Play harness for Honda/Acura K-Series engines includes a Wideband O2 connector, AEMnet connector for communication with other AEMnet enabled devices and an auxiliary connector with a Deutsch DTM 12P connector for adding common aftermarket sensors including fuel pressure, air inlet temperature, MAP, oil temperature and ethanol content sensor. The expansion port also includes a sensor ground, 5v reference, 12v power from relay and high side output for activating a relay or solenoid, a low side output for boost control and analog inputs for mode switch and no-lift shift.
Not legal for sale or use in California on any pollution controlled motor vehicles. See http://www.semasan.com/emissions for state by state emissions requirements.
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
